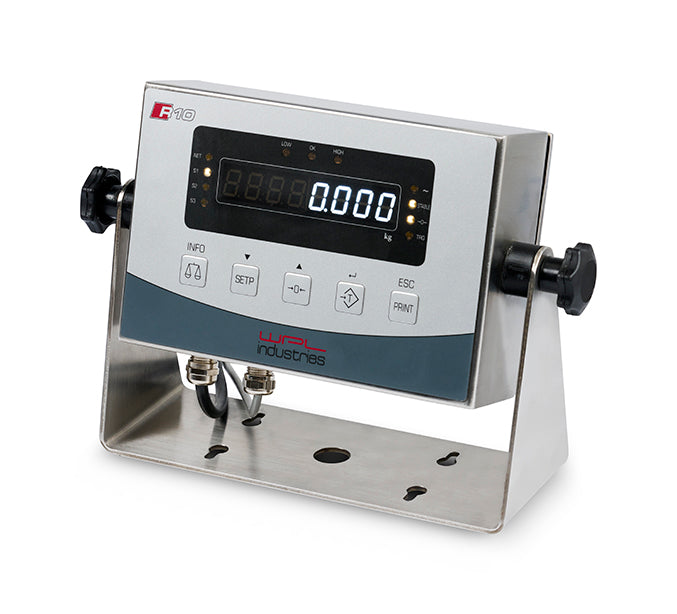

R10 Indicator

WPL Industries BV, a weighing equipment manufacturer from the Netherlands, offers a complete series of high-resolution weighing indicators.

The R10 leverages WPL Industries' extensive experience and is specifically developed for professional applications. You can use the indicator as a standalone setup or, through its advanced communication capabilities, as part of an industrial weighing system.

Key features of the R10 include:

  • Design and styling for industrial use (robust, high IP rating, and easy to clean).
  • Highly user-friendly software.
  • Can connect to one or more load cells. Available as a tabletop model, wall-mounted, or as a built-in panel.
  • High-quality construction in RVS306 stainless steel.
  • Equipped with the latest technology including ice white LEDs, with adjustable intensity.
  • High-capacity optional battery.
  • Optional data storage with flash memory.
  • Expandable with industrial standard shields (Arduino form factor) for WiFi, Bluetooth, and Ethernet expansion.
  • Ability to connect three weighing scales.
  • LED Display, 0.56 inches (14 mm), 7 segments.
  • 24-bit Sigma/Delta ADC.
  • On-board temperature compensation.
  • Battery charging circuit.
  • USB connection for linking to a PC.
  • Built-in industrial connectors for load cells and serial ports.
  • Real-time clock.
  • Various functions accessible via membrane keypad.
  • Password protection against unwanted changes.
  • 50 presets for tolerance weighing with underweight, ok weight, and overweight, including tare and price.
  • 13 onboard digital I/O channels for further expansion.
  • Printout to label printer for weight registration.
  • Multi-range or multi-interval weight display.
  • Various digital filters for different applications.
  • Relay output (4).

OPTIONS/ACCESSORIES

  • Analog output, 12-bit resolution, 0-10VDC, 0-20mA, 4-20mA.
  • Relay outputs (4), normally open (SPST) @24VDC/250 VAC max 3 Ampere.
  • Interface for Profinet®, Modbus TCP®, EtherNet/IPTM, and DeviceNet® protocols.
  • Battery pack.

Software applications:

  • Simple weighing.
  • Counting.
  • Tolerance checkweighing +/-.
  • Filling.
